Implement
70 - Hydraulic( Гидравлический)

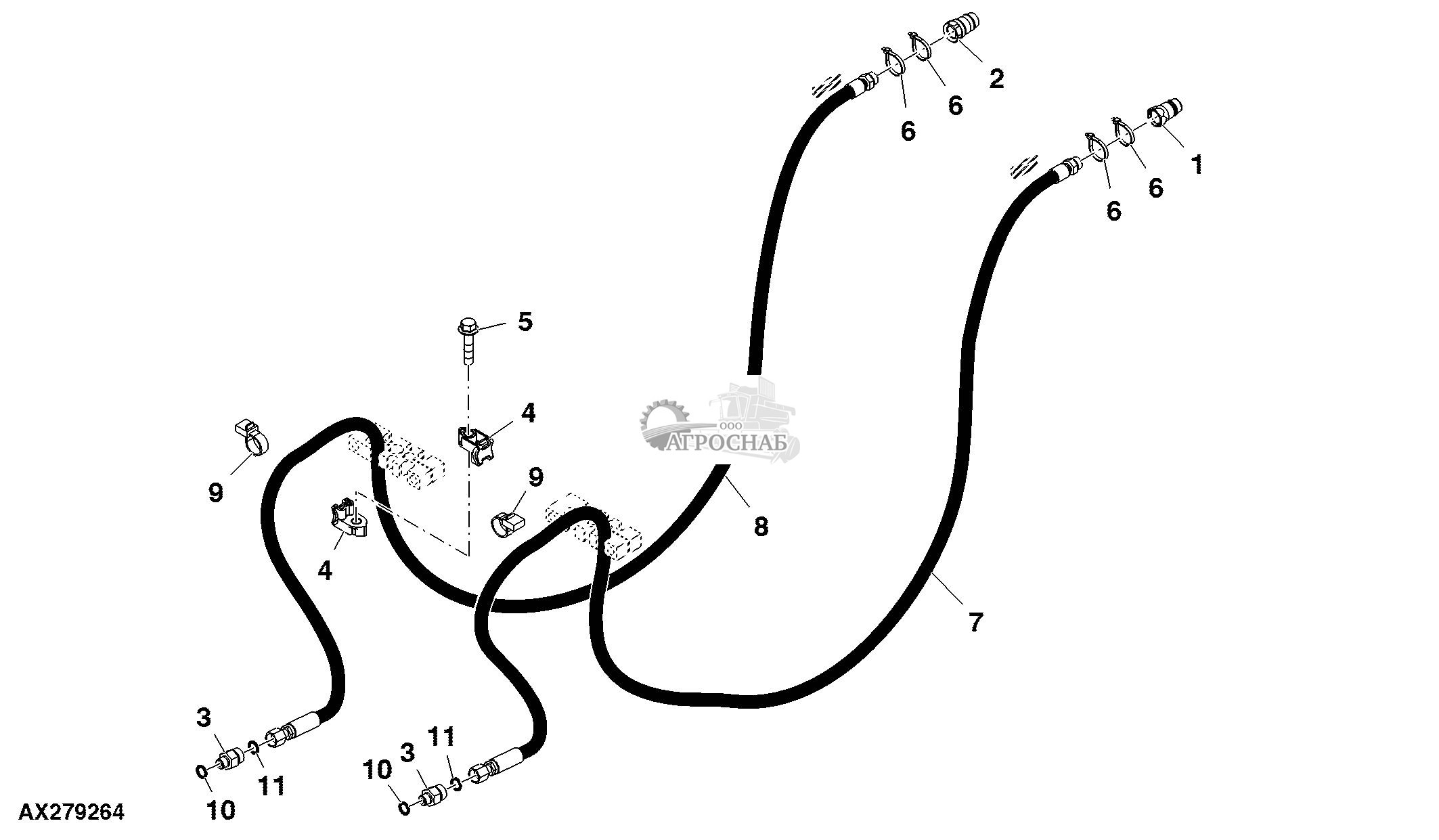

Variable Rate Drive Motor Hoses(Переменная Скорость Привода Мотора Шлангов)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AR94522 | Hydr. Quick Coupler Plug | 1 | |||
| 2 | AA59411 | Hyd. Quick-Connect Coupler | 1 | |||
| 3 | 38H1173 | Adapter Fitting | 2 | |||
| 4 | A88936 | Clamp | 2 | |||
| 5 | 19M7805 | Screw | 1 | M10 X 45 | ||
| 6 | H77698 | Tie Band | 4 | |||
| 7 | AA78341 | Hydraulic Hose | 2 | Pressure, Variable Rate Drive Hose | ||
| 8 | AA78342 | Hydraulic Hose | 2 | Return, Variable Rate Drive Hose | ||
| 9 | H224073 | Tie Band | 2 | |||
| 10 | R26448 | O-Ring | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | T77857 | O-Ring | 2 |

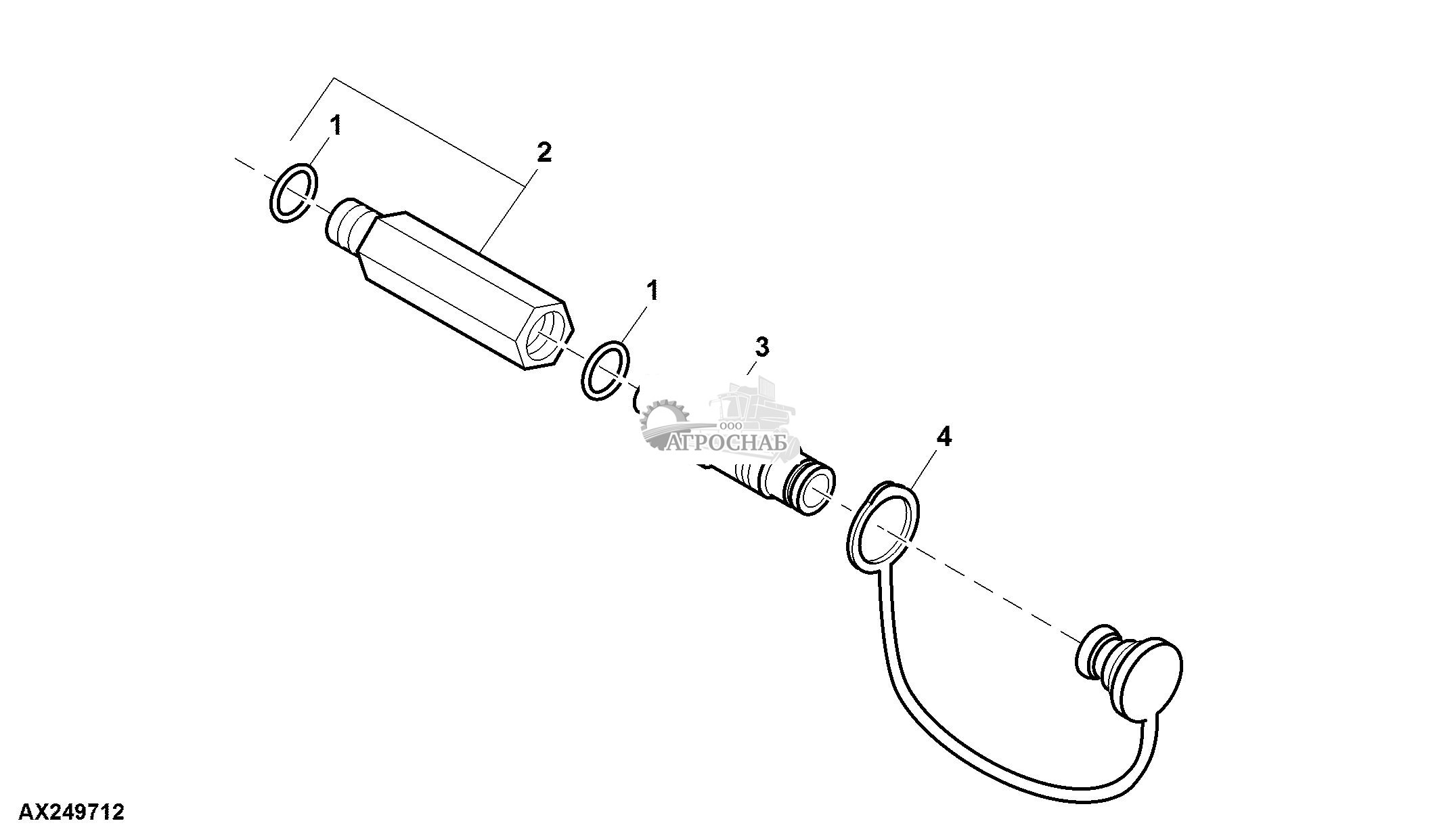

Case Drain Coupler, 8000 Tractor(Дренажный Корпус Автосцепки Тракторные)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 51M7045 | O-Ring | 1 | 19.300 X 2.200 mm | ||
| 2 | RE248312 | Adapter Fitting | 1 | |||
| 3 | RE584722 | Breakaway Coupler | 1 | SUB FOR RE222718 | ||
| 4 | A79902 | Cover | 1 |
